Board And Batten

Concealed Fastener Metal Wall Panel

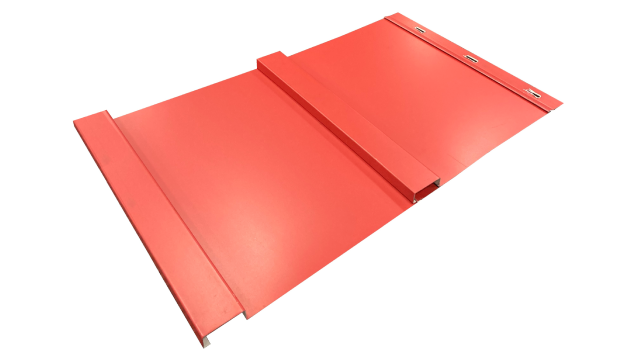

Introducing the new Board and Batten metal wall panel system from Englert. Combining our concealed fastener system with fastening leg and lock, with the sharp lines of wide recessed boards alternating with thin elevated battens, this profile is sure to compliment various architectural styles in the residential and commercial industry. A timeless design matched with Englert’s industry leading quality and innovation will ensure this design will look great for years to come.

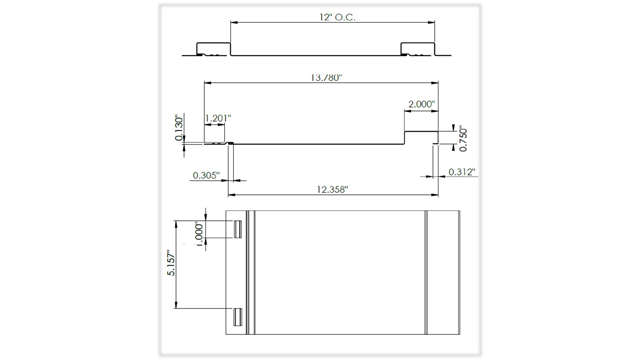

Board And Batten Wall Panel Details

Installed Panel Width – 12” O.C.
Available Material
- Steel – 22ga, 24ga – 30’ Max Length
- Aluminum – .032, .040 – 22’ Max Length

Concealed Mechanical Fasteners with Pre-Punched Holes 5.157” O.C
Vertical Wall Applications Only
2” Wide x ¾” Deep Vertical Batten

Available in all Englert Standard Colors
Florida Product Approval # FL 47597.1

Color Chart

Englert is one of the few single-source metal roof manufacturers with an in-house paint line. Whether the design calls for a natural weathered appearance or bright, high-performance, full-strength fluorocarbon colors, we’ve got a color for every project.
